Casement Window Detail
Casement
Windows

Large Opening

Greater
View

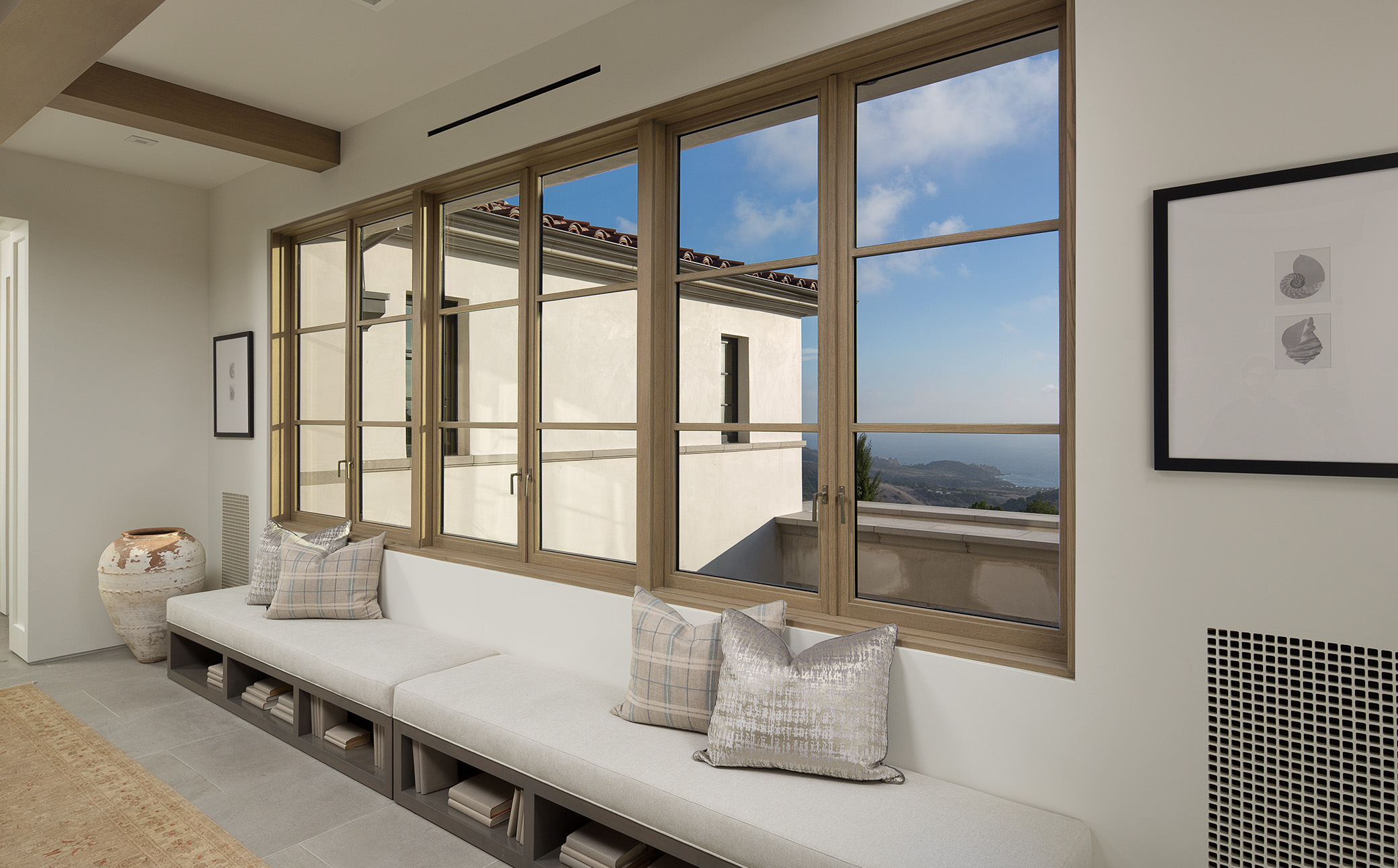

Sash opens outward for excellent ventilation and minimal interference with interior furnishings.

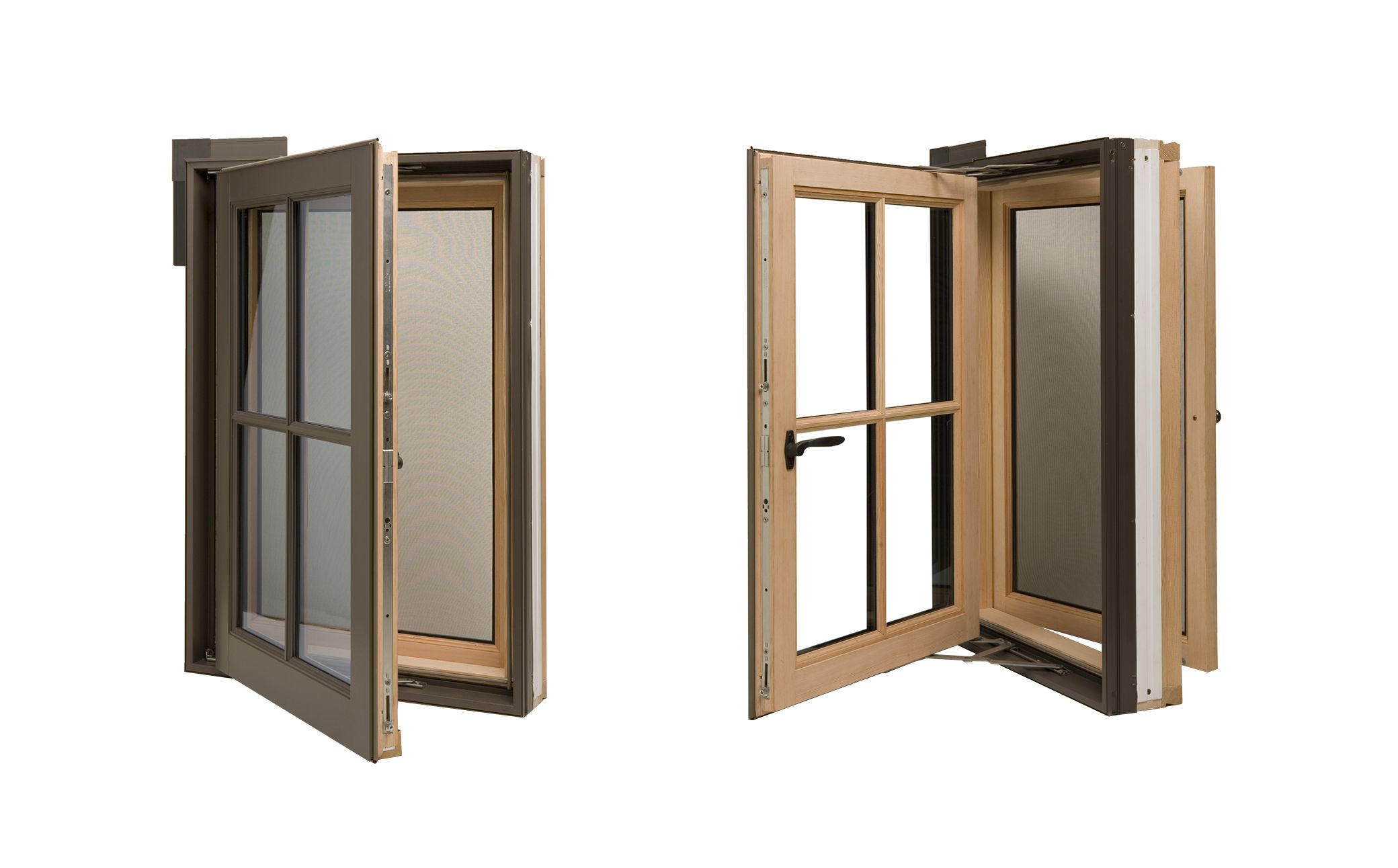

Designed and built to specification. Casement windows are available as Crank-out, Push-out, as well as Inswing and Tilt/Turn. Traditional or contemporary sticking profile options for both Clad Exterior/Wood Interior and Wood Exterior/Wood Interior. Square and Radius shaped windows of all types and sizes. Screen choices include: Fixed aluminum screens, Phantom® roll down screens and hinged wood screens, all with BetterVue® mesh. Weather tightness, structural integrity and long term durability including NFRC testing data availability on most unit types. Vast selection of wood species.

Warranty +
hardware
Handles, Hinges
Southland Windows include top of the line, quality hardware mechanisms and trim on all window types including hardware from industry leading manufacturer’s Truth®, Roto® and Melron™

Monarch Crank out windows and awnings include Truth® Encore locks, operators and folding handles with choice of standard finish: White, Tuscan Bronze, Matte Black, Almond, and Bronze, or the option to upgrade to decorative finish options including Antique Brass, Brushed Brass, Satin Nickel, Polished Chrome and more

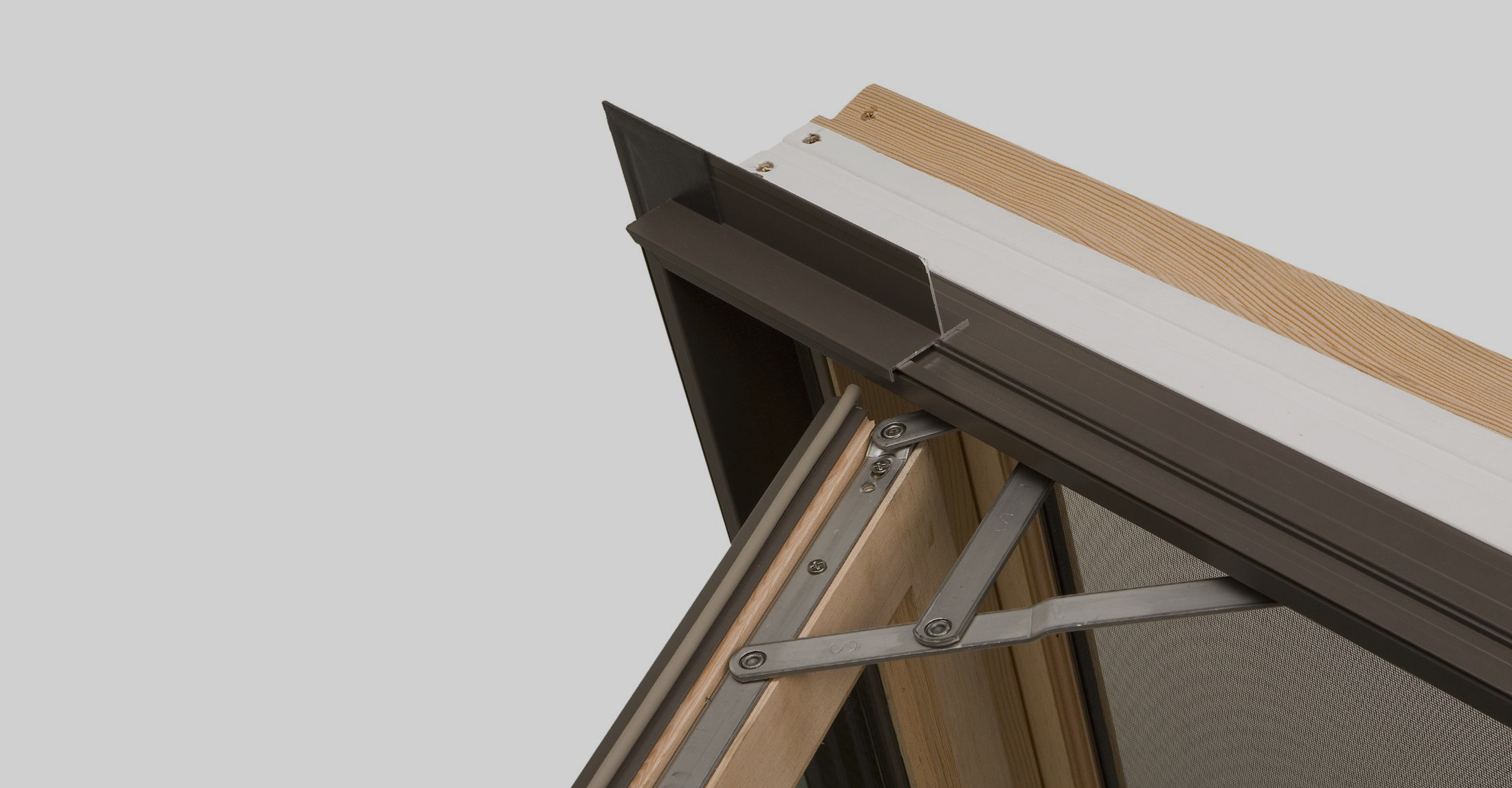

Monarch Push out windows with Roto® mechanisms and multi point locks include Melron® trim hardware with a stay arm feature that allows the sash to be locked in desired open position

Melron™ trim hardware with choice of finish options: Satin Nickel, Rustic Oil Rubbed Bronze, Satin Antique Red Bronze, Black E-Coat and more
glass panes
Cardinal
Southland uses Cardinal Glass Industries™ quality glass products exclusively on our Bifold door units

Cardinal is considered one of the world's leading providers of glass used in top-of-the-line residential windows and doors

Cardinal LoE Insulated glass is available as LoE272, LoE366, LoE340, LoE180 and i89 with argon in the air space; capillary tubes included for high altitude specified projects

LoE glass, especially LoE366, offer an excellent combination of high visible light transmittance, neutral color, low U-value and low solar transmission

Cardinal LoE patented, state-of-the-art sputtered coatings deliver optimal energy efficiency

Cardinal's "Endure" stainless steel dark bronze spacer ensures longevity and optimal thermal performance

Preserve™ protective film is standard on Southland units with LoE IG products and protects glass in transit and on the construction site

Neat™ coating ensures windows clean easier and stay clean longer is standard on LoE366. It is optional on all other LoE Cardinal glass products

Specialty, tinted and obscure/decorative glass available
sash & frame
Wood Species
Clad exterior/wood interior or wood exterior/wood interior available

Standard 1 ¾" and 2 ¼" available as an option

Virtually limitless wood species include Vertical Grain Fir, Pine, Clear Alder, Knotty Alder, White Oak, Red Oak, Teak, White Maple, Western Red Cedar, Cherry, Walnut, Sapele, African Mahogany, Hemlock and moreFactory primed interior (and primed exterior for wood units) available

Factory primed interior (and primed exterior for all wood units) available

Simulated divided lites with dark bronze spacer as ⅞" and 1 ⅛" bars with traditional or contemporary profiles.

Our extruded aluminum clad, thick wall 6063 T-5 hardness, components are uniquely tooled for and owned by Southland Windows Inc.

Clad frames are constructed with heavy extruded aluminum engineered corner key insert with injected sealant and are mechanically fastened.

Frame and head include structural metal nailing fin and drip cap.

On clad/wood interior units, all wood is covered by extruded aluminum cladding leaving no wood exposed to exterior elements.
clad finish
Coating
Clad finish options to customer specification include Kynar wet coating, Anodize and Powder Coat

Southland clad standard finish - AAMA 2605 70% Kynar wet coating, high performance exterior specification resistant to moisture, ozone, UV radiation and weathering and is considered the ultimate for performance and longevity

Standard colors or virtually limitless custom color options available to match a customer supplied color sample

Anodize colors: Clear, Light Bronze, Medium Bronze, Dark Bronze, Champagne, Extra Dark Bronze, and Black - specialty anodize copper also available

Anodized finishes are rated as class I

Powder Coat available in virtually limitless custom colors

Power coated finishes meet the AAMA 2605 specification

Specialty textured and metallic finish options available
