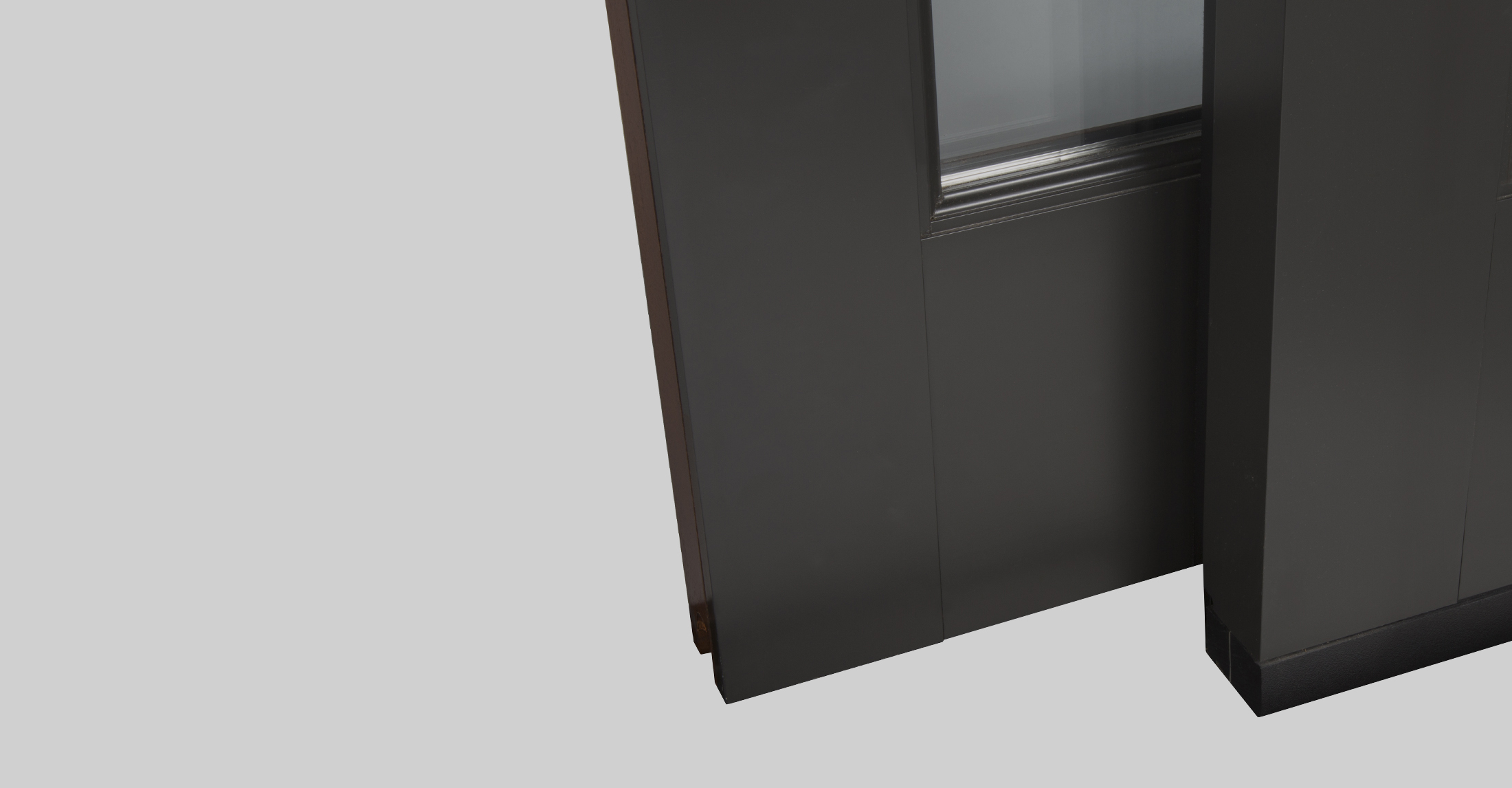

Sliding Door Detail
Patio
Slider Doors

Easy Access

to the
Outdoors
Glass panels slide effortlessly to the side and won’t interfere with entryways or nearby furnishings.

Designed and built to specification to maximize living space. Clad Exterior/Wood Interior or Wood Exterior/Wood Interior available. Traditional and soft contemporary profiles to meet any architectural style. Extensive selection of wood species. Patio Sliding doors available as OX or XO and OXXO bi-parting configurations. Units can be made with a width up to 16’ and height up to 10’ to span large openings. Patio Sliding doors include a heavy duty aluminum sliding screen which can be painted to match the clad exterior color.

Warranty +
hardware
Handles, Hinges
Southland Exterior Patio Sliding doors come standard with German engineered Hoppe™ stainless steel locking hardware mechanisms

All Hoppe™ stainless steel hardware components provide excellent corrosion resistance in natural atmospheric conditions including urban pollution and salt to ensure optimal long lasting quality and performance

Trim hardware/handle by Hoppe. Customer may opt to provide their own compatible trim hardware in lieu of Hoppe options - Hoppe Patio handle styles: Munchen and Verona, Hoppe backplate styles: contemporary segment arch or traditional bell shape, o Hoppe finish options: Rustic Umber, Antique Brass, Matte Black, White, Polished Chrome, Brushed Chrome, Satin Nickel, Antique Nickel and Oil Rubbed Brass

Heavy duty wheel carriage and rollers are tandem precision bearing stainless steel providing a smooth glide and high performance
glass panes
Cardinal
Southland uses Cardinal Glass Industries™ quality glass products exclusively on our door units

Cardinal is considered one of the world’s leading providers of glass used in top-of-the-line residential windows and doors

Cardinal LoE Insulated glass is available as LoE272, LoE366, LoE340, LoE180 and i89 with argon in the air space; capillary tubes included for high altitude specified projects

LoE glass, especially LoE366, offer an excellent combination of high visible light transmittance, neutral color, low U-value and low solar transmission

Cardinal LoE patented, state-of-the-art sputtered coatings deliver optimal energy efficiency

Cardinal's "Endure" stainless steel dark bronze spacer ensures longevity and optimal thermal performance

Preserve™ protective film is standard on Southland units with LoE IG products and protects glass in transit and on the construction site

Neat™ coating ensures windows clean easier and stay clean longer

Specialty, tinted and obscure/decorative glass available
panel & frame
Wood Species
Clad exterior/wood interior or wood exterior/wood interior available

Virtually limitless wood species including Vertical Grain Douglas Fir, Pine, Clear Alder, Knotty Alder, White Oak, Red Oak, Teak, White Maple, Western Red Cedar, Cherry, Walnut, Sapele, African Mahogany, Honduras Mahogany, Hemlock and more

Factory primed interior (and primed exterior for wood units) available

1 ¾" door panels

Standard jamb width of 5 ½" - other jamb widths are available

Extruded bronze aluminum sill with screen track

Engineered LVL core stiles with laminated real wood veneers provide consistent structural integrity and are less prone to warping particularly on taller door panels

Top rails and bottom rails are solid wood

Stile/top rail widths and profiles: 4" contemporary, 4" traditional and 5" traditional

Bottom rail height and profiles: 7 ½" contemporary, 7 ½" traditional and 9 ½" traditional

Simulated divided lites with dark bronze glass spacer as ⅞" and 1 ⅛" bars with traditional or contemporary profiles

All wood treated in Wood Life™ preservative to promote longevity

Our extruded aluminum clad, thick wall 6063 T-5 hardness, components are uniquely tooled for and owned by Southland Windows & Doors

Clad frames are constructed with heavy extruded aluminum using engineered corner key inserts with acrylic injected sealant and are mechanically fastened

Frame and head include structural nailing fin

On clad exterior/wood interior units, all wood is covered by aluminum cladding leaving no wood exposed to exterior elements
clad finish
Coating
Clad finish options to customer specification include Kynar wet coating, Class 1 Anodize and Powder Coat

Southland clad standard finish - AAMA 2605 70% Kynar wet coating, high performance exterior specification resistant to moisture, ozone, UV radiation and weathering and is considered the ultimate for performance and longevity

Standard colors or virtually limitless custom color options available to match a customer supplied color sample

Class 1 Anodize colors: Clear, Light Bronze, Medium Bronze, Dark Bronze, Champagne, Extra Dark Bronze, and Black – specialty anodize copper also available

Powder Coat available in virtually limitless custom colors

Specialty textured and metallic finish options available
