Fixed Casement Window Detail
Fixed
Casement

Highlighting

the Home
Exterior

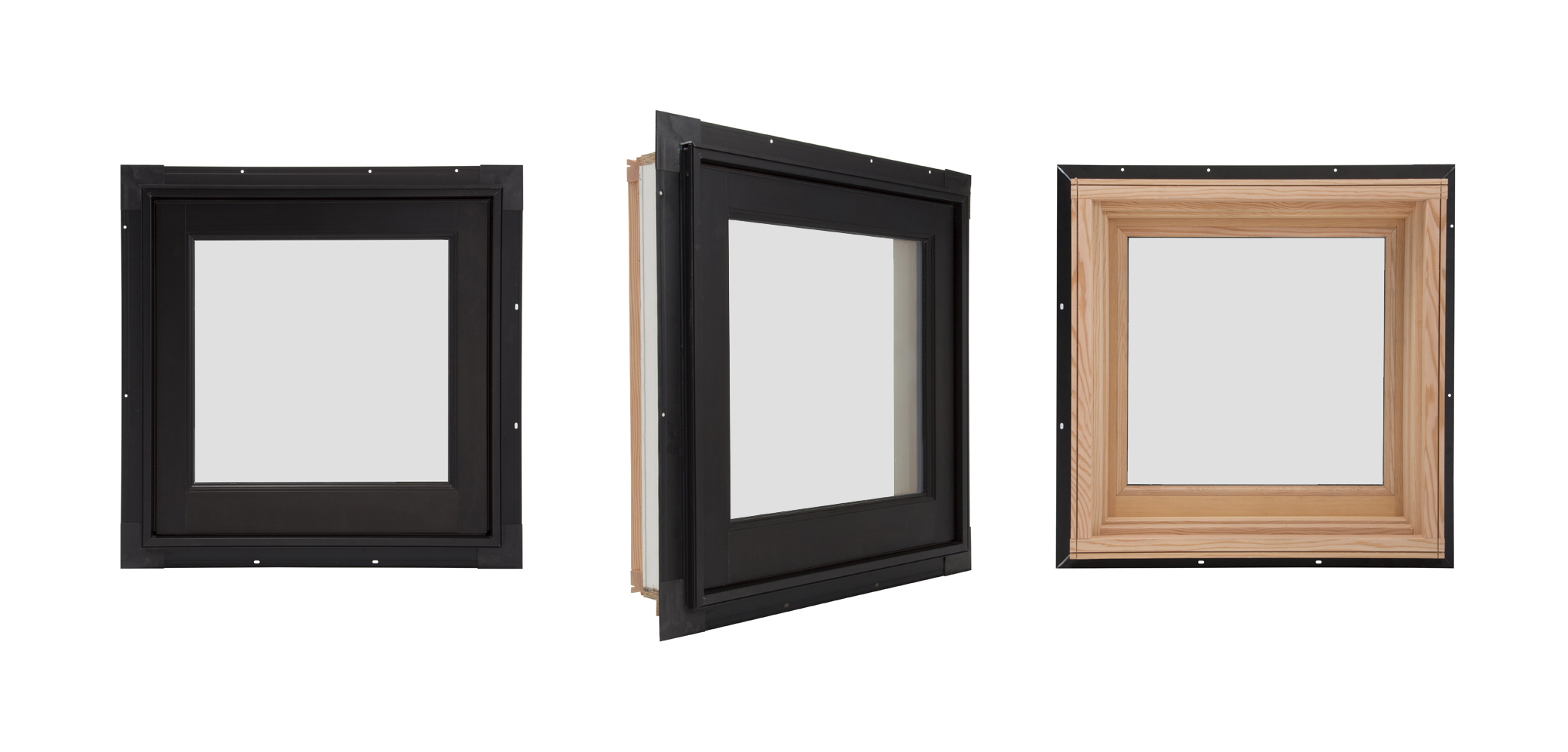

Designed and built to specification. Fixed windows are designed to complement our Casement Crank-out, Casement Push-out, Inswing and Tilt/Turn, plus Awning and Double Hung operating windows.

Traditional or contemporary sticking profile options for both Clad Exterior/Wood Interior and Wood Exterior/Wood Interior. Square and Radius shaped fixed casement windows are available. Weather tightness, structural integrity and long term durability including NFRC testing data availability on most unit types. Vast selection of wood species.

Warranty +
glass panes
Cardinal
Southland uses Cardinal Glass Industries™ quality glass products exclusively on our Bifold door units

Cardinal is considered one of the world's leading providers of glass used in top-of-the-line residential windows and doors

Cardinal LoE Insulated glass is available as LoE272, LoE366, LoE340, LoE180 and i89 with argon in the air space; capillary tubes included for high altitude specified projects

LoE glass, especially LoE366, offer an excellent combination of high visible light transmittance, neutral color, low U-value and low solar transmission

Cardinal LoE patented, state-of-the-art sputtered coatings deliver optimal energy efficiency

Cardinal's "Endure" stainless steel dark bronze spacer ensures longevity and optimal thermal performance

Preserve™ protective film is standard on Southland units with LoE IG products and protects glass in transit and on the construction site

Neat™ coating ensures windows clean easier and stay clean longer is standard on LoE366. It is optional on all other LoE Cardinal glass products

Specialty, tinted and obscure/decorative glass available
sash & frame
Wood Species
Clad exterior/wood interior or wood exterior/wood interior available

Virtually limitless wood species including Vertical Grain Douglas Fir, Pine, Clear Alder, Knotty Alder, White Oak, Red Oak, Teak, White Maple, Western Red Cedar, Cherry, Walnut, Sapele, African Mahogany, Honduras Mahogany, Hemlock and more

Factory primed interior (and primed exterior for wood units) available

Standard 1 ¾" sash and 2 ¼" available as an option

Factory primed interior (and Primed exterior for wood units) available

Simulated divided lites with dark bronze spacer as ⅞" and 1 ⅛" bar with traditional or contemporary profiles

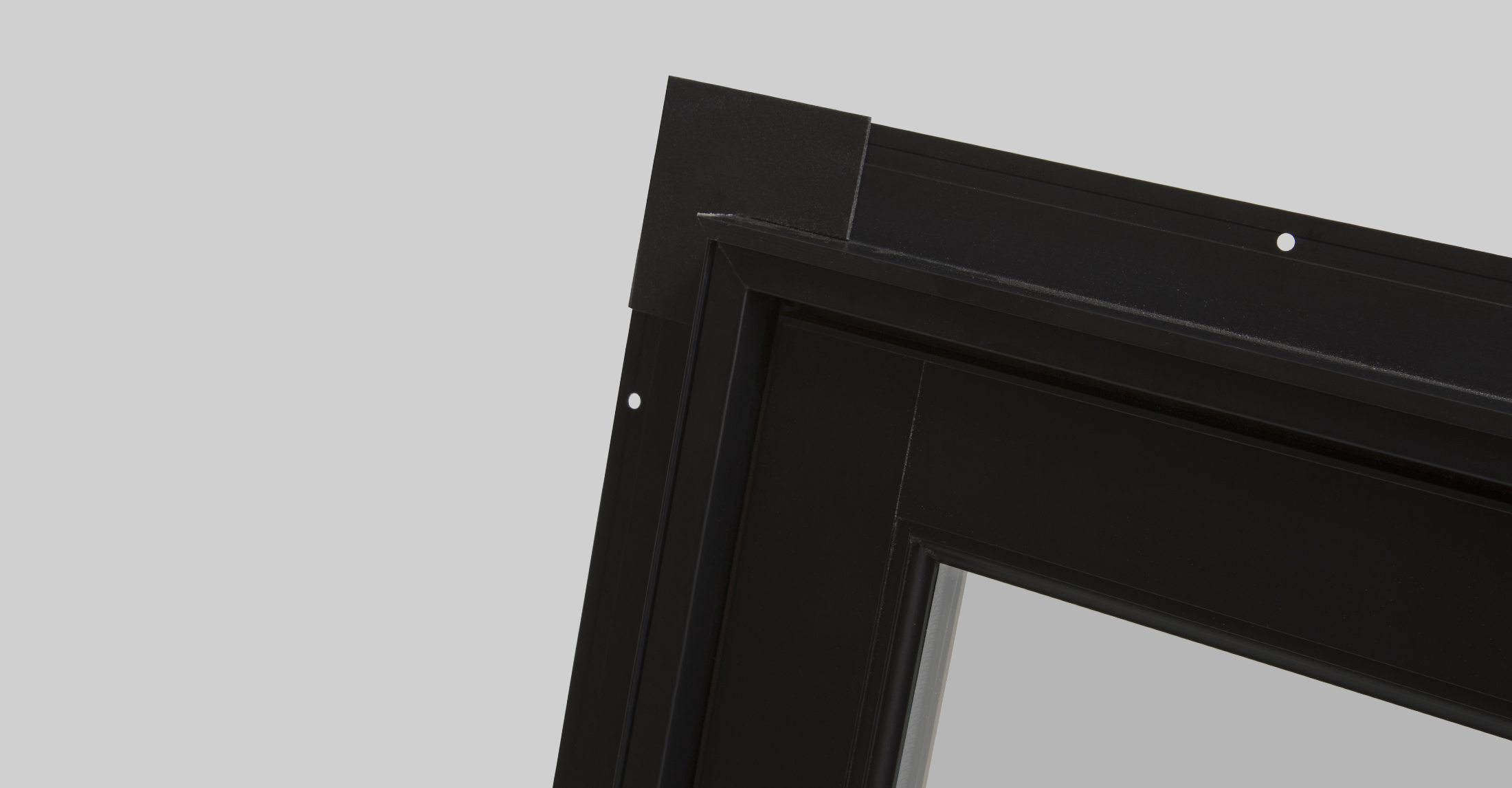

Our extruded aluminum clad, thick wall 6063 T-5 hardness, components are uniquely tooled for and owned by Southland Windows Inc.

Clad frames are constructed with heavy extruded aluminum using engineered corner key inserts with injected sealant and mechanically fastened

Frame and head include structural metal nailing fin and drip cap

On clad exterior/wood interior units, all wood is covered by extruded aluminum cladding leaving no wood exposed to exterior elements
clad finish
Coating
Clad finish options to customer specification include Kynar wet coating, Anodize and Powder Coat

Southland clad standard finish - AAMA 2605 70% Kynar wet coating, high performance exterior specification resistant to moisture, ozone, UV radiation and weathering and is considered the ultimate for performance and longevity

Standard colors or virtually limitless custom color options available to match a customer supplied color sample

Anodize colors: Clear, Light Bronze, Medium Bronze, Dark Bronze, Champagne, Extra Dark Bronze, and Black - specialty anodize copper also available

Powder Coat available in virtually limitless custom colors

Specialty textured and metallic finish options available
